D-Pillar Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The following describes the removing and installing on the left side of the vehicle. Removing and installing on the right side is similar.
-- Remove the third row belt end fitting. Refer to THIRD ROW REAR BELT END FITTING, REMOVING AND INSTALLING .

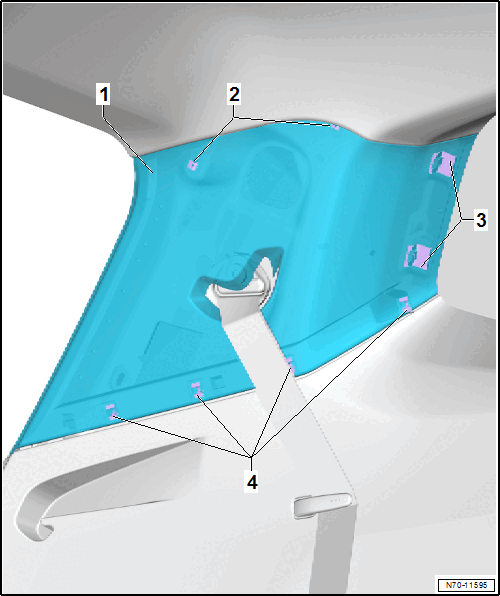

-- Unclip the D-pillar trim panel -1- near the clips -4- from the body mounts using the Pry Lever:80 - 200 .
-- Unclip the D-pillar trim panel -1- near the clips -2- from the body mounts using the Pry Lever:80 - 200 .
-- Remove the D-pillar trim panel toward the front from the clips -3-.
