C-Pillar Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The following describes the removing and installing on the left side of the vehicle. Removing and installing on the right side is similar.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the second row belt end fitting. Refer to SECOND ROW REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .

-- Remove the C-pillar vent. Refer to C-PILLAR AIR VENT, REMOVING AND INSTALLING .

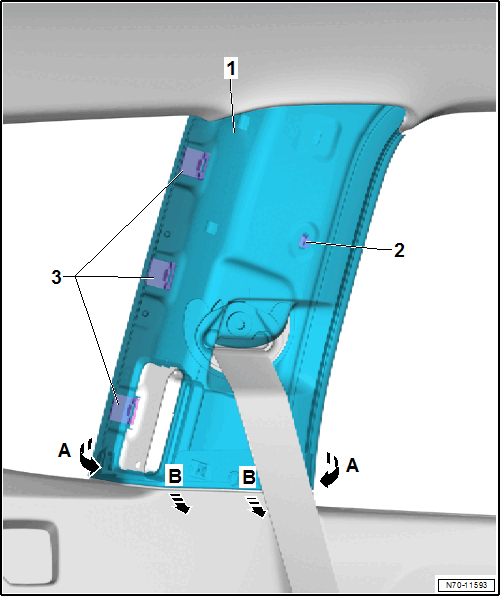

-- Unclip the C-pillar trim panel -1- near the clip -2- from the body mount using the Pry Lever:80 - 200 .

-- Remove the C-pillar trim panel toward the front from the clips -3-.
