B-Pillar Trim Panel, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
NOTE:
Check all the fasteners for damage and replace if necessary.
Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the B-pillar trim panels.
Make sure that the B-pillar trim panels are inside the door seal molding after installing.

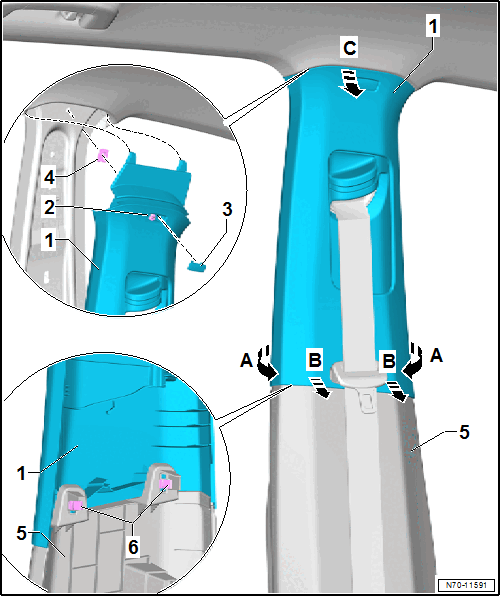

B-Pillar Upper Trim Panel
-- Pay attention that the expanding clip -4- is installed correctly in the B-pillar.
-- Guide the B-pillar trim panel -1- behind the head curtain airbag, so that it is not damaged.
