Overview - Headliner
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

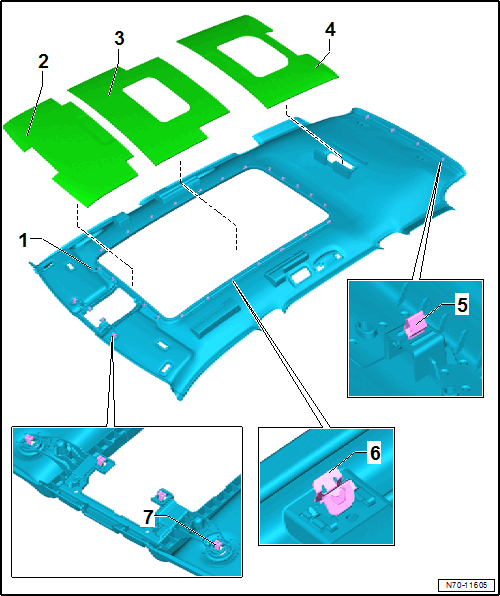

- Headliner
- For certain equipment levels, it is necessary to cut openings in the new headliner. Refer to Cutting openings in the new headliner .
- Removing and Installing. Refer to HEADLINER, REMOVING AND INSTALLING .
- Fleece
- Not with a sliding sunroof
- No replacement part, component of the headliner
- Fleece
- Not with a sliding sunroof
- No replacement part, component of the headliner
- Fleece
- No replacement part, component of the headliner
- Clip
- Quantity: 4
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool:T40280
- Replace damaged or deformed clips
- Clip
- Only with a sliding sunroof
- Quantity: 23
- Insert in the headliner
- Remove any remaining clips in the frame
- Replace damaged or deformed clips
- Clip
- Quantity: 4
- Loosen with the Release Pliers:VAS 6427
