Overview - Rear Lid Trim Panels

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

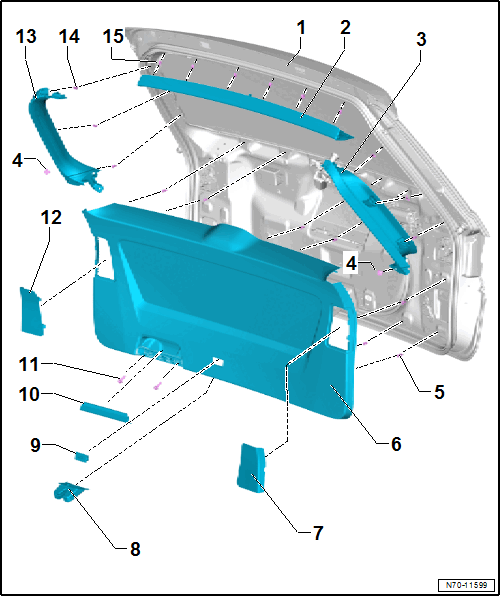

Fig 1: Exploded View Of Rear Lid Trim Panels

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Lid
- Rear lid upper trim panel, removing and installing. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .
Center Window Frame Trim Panel
- Removing and Installing. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .
Side Window Frame Trim Panel
- Left and right
- Removing and Installing. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .
Clip
- Quantity: 2
Clips
- Quantity: 14
Rear Lid Lower Trim Panel
- Removing and Installing. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .
Service Door
- Left
Lock Cover
Cap
Handle Trim
Bolt
- Quantity: 2
- 2 Nm
Service Door
- Right
Side Window Frame
- Right
- Removing and Installing. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .
Clips
- Quantity: 6
Clips
- Quantity: 6
