Overview - Luggage Compartment Side Trim Panel
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

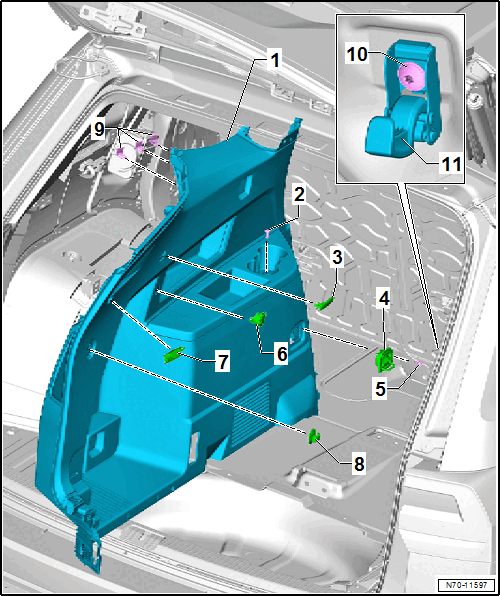

The illustration shows the luggage compartment side trim panel on the left side. The right side is a mirror image.
- Luggage Compartment Side Trim Panel
- Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Bracket
- For third row belt
- Tie Down
- Removing and Installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- 12 Volt Socket
- Equipped on some models
- Luggage Compartment Lamp -W3-
- Removing and installing. Refer to LUGGAGE COMPARTMENT LAMP -W3- /LUGGAGE COMPARTMENT LAMP 2 -W115-, REMOVING AND INSTALLING .
- Hook
- For the luggage net
- Clip
- Quantity: 3
- Insert in the window frame
- Replace damaged or deformed clips
- Bolt
- 7 Nm
- Bag Hooks
- Only on the right luggage compartment side
- Removing and Installing. Refer to BAG HOOK, REMOVING AND INSTALLING .
