Overview - Luggage Compartment Floor

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

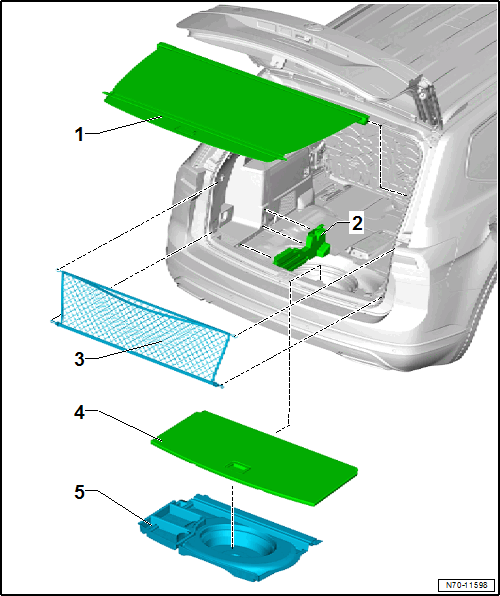

Fig 1: Exploded View Of Luggage Compartment Floor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Luggage Compartment Cover
- Removing and Installing. Refer to LUGGAGE COMPARTMENT COVER, REMOVING AND INSTALLING .
Luggage Compartment Floor Covering Bracket
- Removing and Installing. Refer to LUGGAGE COMPARTMENT CARPET BRACKET, REMOVING AND INSTALLING .
Cargo net
Luggage Compartment Floor
- Allocation. Refer to the appropriate Electronic Parts Information.
- Remove from the vehicle toward the rear
Spare Wheel Well Trim
