Luggage Compartment Side Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the respective seat from the third row. Refer to SEAT, REMOVING AND INSTALLING .

-- Remove the luggage compartment cover. Refer to LUGGAGE COMPARTMENT COVER, REMOVING AND INSTALLING .

-- Remove the luggage compartment floor bracket. Refer to LUGGAGE COMPARTMENT CARPET BRACKET, REMOVING AND INSTALLING .

-- Remove the sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Remove the coat hook. Refer to BAG HOOK, REMOVING AND INSTALLING .

-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

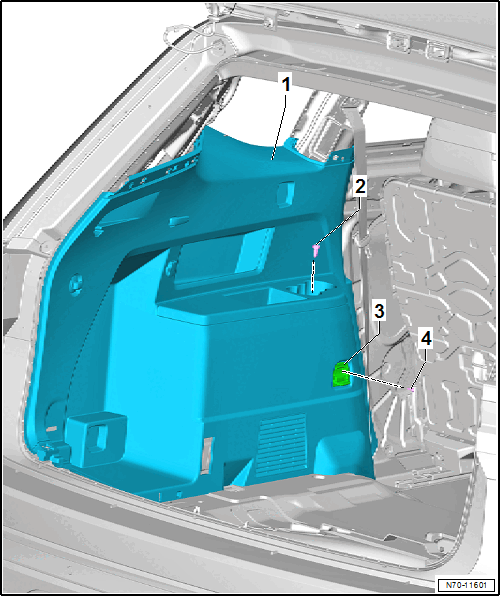

-- Remove the bolt -2- in the cupholder.

-- Remove the bolt -4-.

-- Remove the tie down -3-. Refer to TIE DOWN, REMOVING AND INSTALLING .

-- Loosen the luggage compartment side trim panel with the Pry Lever:80 - 200 all the way around the body mounts.

-- Disconnect the connectors present and remove the luggage compartment side trim panel.
