Lock Carrier Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the luggage compartment floor toward the rear.

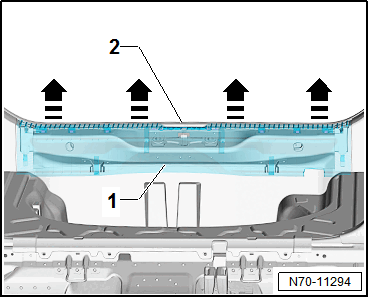

-- Detach the lock carrier trim panel -1- from the molding for the rear lid seal -2-.
-- Loosen the lock carrier trim panel -1- near the clips from the body mounts using the Pry Lever:80 - 200 -arrows-.
-- Remove the lock carrier trim panel -1- upward.
