Side Defroster Vent, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
GWWN70-11588Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

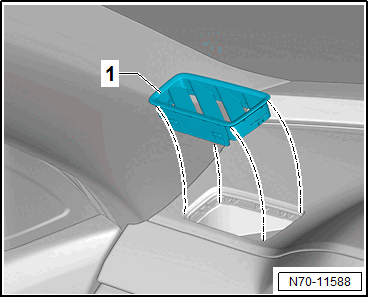

-- Pry the defroster vent -1- upward out of the instrument panel installation opening using the Trim Removal Wedge:3409  and remove it.
