Center Vent, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Position the vertical or horizontal slats of the vent to maximum air supply.

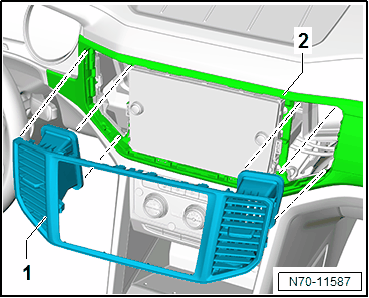

-- Carefully guide the Hook:T10538 in the right vent -1-.
-- Engage the Hook:T10538 on the upper end in the fresh air duct.
NOTE:
The insertion depth of the Hook:T10538 is approximately 14 cm.
-- Release the center vent on the right side out of the decorative trim -2- with a firm jerk.
-- Carefully guide the Hook:T10538 in the left vent -1-.
-- Engage the Hook:T10538 on the upper end in the fresh air duct.
NOTE:
The insertion depth of the Hook:T10538 is approximately 14 cm.
-- Release the center vent on the left side out of the decorative trim -2- with a firm jerk and remove.
