Overview - Rear Wheel Housing Liner
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Depending on the model version, slight deviations of the front wheel housing liner must be considered when removing and installing.

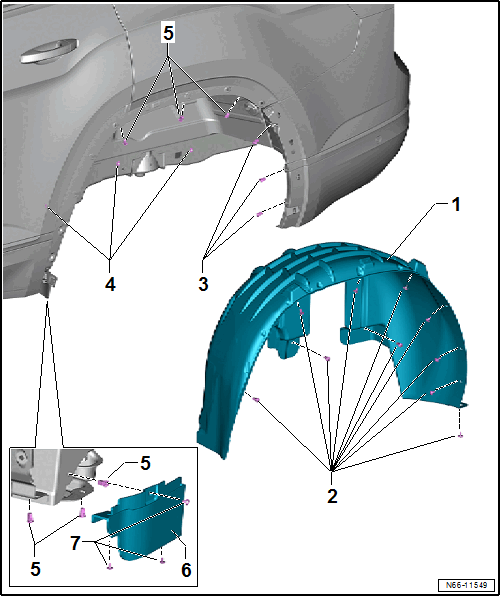

The illustration shows the left side. The right side is identical.
- Rear Wheel Housing Liner
- PP/EPDM material
- Removing and Installing. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .
- Bolt
- 2.0 Nm
- Quantity: 10 on each side
- Spring Nuts
- Quantity: 3 on each side on the bumper
- Expanding Nut
- Quantity: 3 on each side
- Gas-tight
- The expanding nuts seal off the vehicle interior from exhaust gas and must always be replaced if they are damaged.
- Expanding Nuts
- Quantity: 3 on each side for the wheel housing liner
- Quantity: 3 on each side for the sill panel cover
- Sill Panel Cover
- Removing:
- Rear Wheel Housing Liner, Detaching. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
- Remove the bolts -7- and remove the sill panel cover downward.
- Installing:NOTE:
Check the expanding nut for damage and replace if necessary.
- Position and fasten the sill panel cover.
- Bolt
- 2.0 Nm.
- Quantity: 3
