Rear Lid Name Badge Dimensions
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

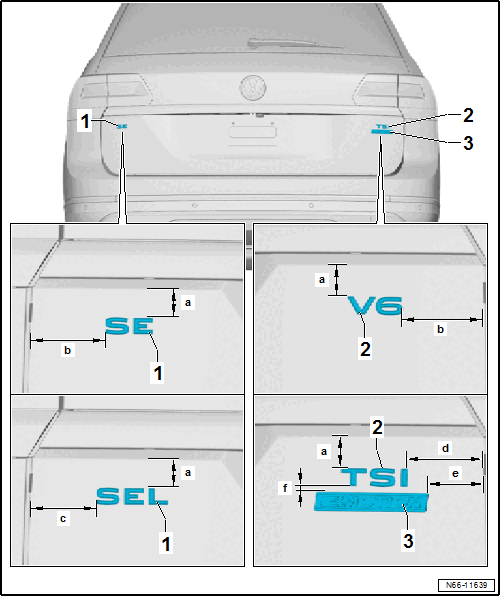

Follow the assembly instructions when installing the name badges. Refer to BONDED NAME BADGES, REMOVING AND INSTALLING .
- Name Badge
- Model name
- Height dimension -a- = 30 ± 1 mm, from the upper edge of the name badge to the edge of the rear lid.
- Side dimension -b- = 80 ± 1 mm, from the outer edge in the rear lid to the name badge "SE"
- Side dimension -c- : 70 ± 1 mm, from the outer edge in the rear lid to the name badge "SEL"
- Note the assembly instructions. Refer to BONDED NAME BADGES, REMOVING AND INSTALLING .
- Name Badge
- Engine designation
- Height dimension -a- = 30 ± 1 mm, from the upper edge of the name badge to the edge of the rear lid.
- Side dimension -b- = 80 ± 1 mm, from the outer edge in the rear lid to the name badge "V6"
- Side dimension -c- : 74 ± 1 mm, from the outer edge in the rear lid to the name badge "TSI"
- Note the assembly instructions. Refer to BONDED NAME BADGES, REMOVING AND INSTALLING .
- Name Badge
- Technical designation
- Side dimension -e- = 54 ± 1 mm, from the outer edge in the rear lid to the name badge
- Intermediate dimension -f- = 6 ± 1 mm, between the name badges
- Note the assembly instructions. Refer to BONDED NAME BADGES, REMOVING AND INSTALLING .
