Front Wheel Arch Trim Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The front wheel cover trim cannot be removed without damaging it.

-- Before removing, warm up the front wheel arch trim trim -2- in the adhesive surface area -3- using a Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A  .

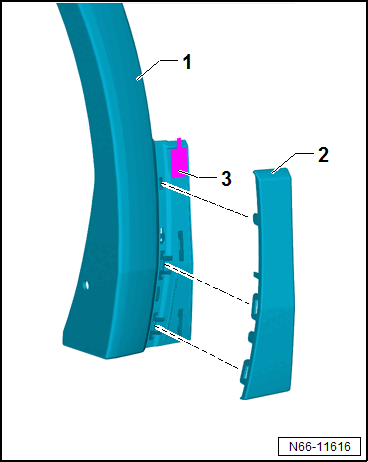

GWWN66-11616Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully guide the Trim Removal Wedge:3409  between the wheel housing trim panel -1- and the front wheel arch trim -2-.

-- As soon as the bonded joint -3- has loosened unclip the front wheel cover trim -2- from the wheel cover -1-.
