Overview - Front Wheel Cover

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.

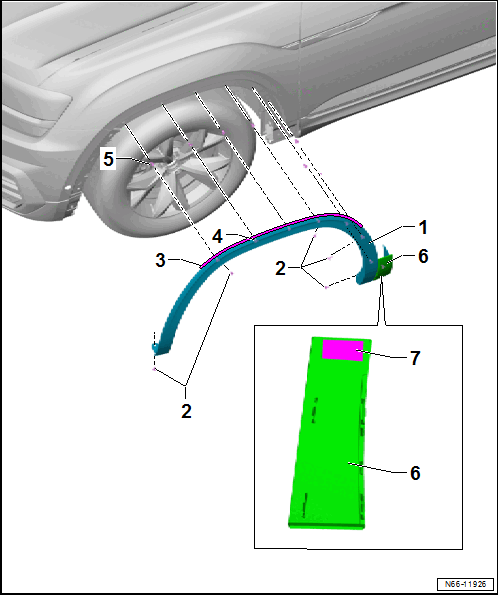

Fig 1: Exploded View Of Front Wheel Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Wheel Covers
- Front
- Removing and Installing. Refer to WHEEL ARCH TRIMS, REMOVING AND INSTALLING .
Bolts
- 2 Nm
- Quantity: 5
Adhesive Tape
- Two-sided
  Refer to the appropriate Electronic Parts Information for the allocation.
Clips
- Quantity: 8
Grommets
- Quantity: 8
Trim
- Removing and Installing. Refer to FRONT WHEEL ARCH TRIM TRIM, REMOVING AND INSTALLING .
Adhesive Tape
- Two-sided
  Refer to the appropriate Electronic Parts Information for the allocation.
