Overview - Front Cover

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.

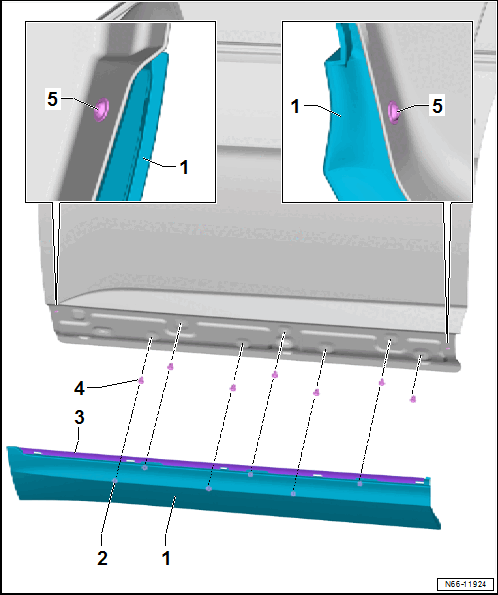

GWWN66-11924Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Cover
  2. Clips
    • Quantity: 11
  3. Adhesive Tape
    • Two-sided

      Refer to the appropriate Electronic Parts Information for the allocation.

  4. Grommets
    • Quantity: 11
  5. Bolts
    • 2 Nm
    • Quantity: 2
