Cover, Removing And Installing
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the mirror glass. Refer to MIRROR GLASS, REMOVING AND INSTALLING .
-- Remove the mirror cap. Refer to MIRROR CAP, REMOVING AND INSTALLING .
-- Remove the mirror frame. Refer to MIRROR TRIM, REMOVING AND INSTALLING .
-- Remove the turn signal. Refer to TURN SIGNAL, REMOVING AND INSTALLING .

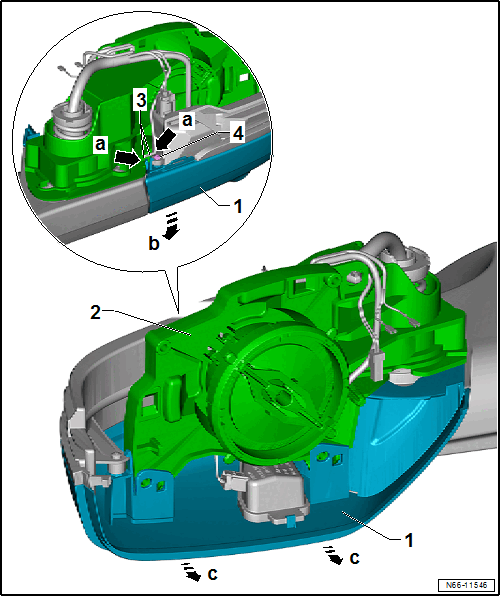

-- Push the hooks -3- together -a arrows-.
-- Pivot the rear cover -1- slightly downward in direction of -arrow b- and remove toward the front in direction of -c arrows-.
Installing
Install in the reverse order of removal while noting the following:
-- Steps and notes for the peripheral camera. Refer to PERIPHERAL CAMERA, CALIBRATING .
-- Then perform a function test.
