Special Tools

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tools

GWWW20-10052

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Trim Removal Wedge:3409
Injection Rate Comparison Meter Kit - Remote Cable:VAG1348/3A
Multimeter, for example Digital Multimeter:FLUKE83III
Vehicle Diagnostic Tester - Test Adapter - 5 Pin:VAS5565
Pressure Tester Kit:VAS6550
Pressure Tester Kit - Adapter Set - Hose 3:VAS6550/3-3
Pressure Tester Kit - Adapter Set - Hose 4:VAS6550/3-4
Pressure Regulator Valve:VAS6550/4

Fig 2: Identifying Pressure Regulator Valve VAS 6550/4
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Measuring container, greater than 3 liters (3.1 quarts)

Fig 3: Identifying Special Tools

GWWW20-10054

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Trim Removal Wedge:3409
Wrench - Fuel Sending Unit:T10202
Torque Wrench 1332 40-200Nm:VAG1332
Fuel Extractor:VAS5190A

GWWW20-10055

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Trim Removal Wedge:3409
Injection Rate Comparison Meter Kit - Remote Cable:VAG1348/3A
Vehicle Diagnostic Tester - Test Adapter - 5 Pin:VAS5565
Fuel Extractor:VAS5190A
Fuel Extraction - Adapter 1:VAS5190/1
Fuel Extraction - Adapter 2:VAS5190/2
Fuel Extraction - Adapter 3:VAS5190/3

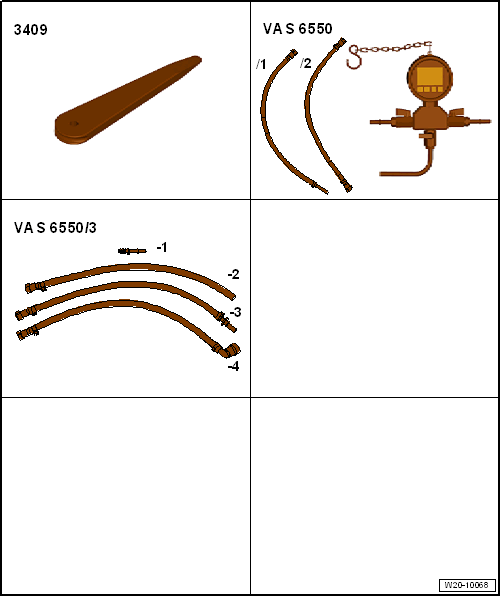

GWWW20-10068

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Trim Removal Wedge:3409
Pressure Tester Kit:VAS6550
Pressure Tester Kit - Adapter Set - Hose 3:VAS6550/3-3
Pressure Tester Kit - Adapter Set - Hose 4:VAS6550/3-4
Vehicle Diagnostic Tester

Special tools and workshop equipment required

Lever - Fuel Line:T10468

Fig 4: Identifying Lever - Fuel Line
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1331 5-50Nm:VAG1331

Fig 5: Identifying Torque Wrench
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1332 40-200Nm:VAG1332

Fig 6: Identifying Torque Wrench 1332
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Connector Test Set:VAG1594D

Fig 7: Connector Test Set VAG1594D
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hand Vacuum Pump:VAS6213

Fig 8: Hand Vacuum Pump VAS 6213
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Bung Set:VAS6122

Fig 9: Engine Bung Set
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Pressure Tester Kit:VAS6550

Fig 10: Identifying Pressure Tester Kit VAS 6550
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine and Gearbox Jack:VAS6931

Fig 11: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clamps - Up To 25 mm:3094

Fig 12: 3094 Hose Clamps
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
