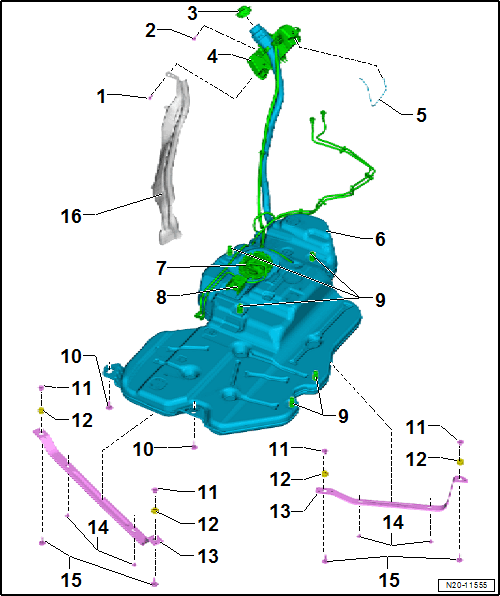

Overview - Fuel Tank
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 8 Nm +90°
- Always replace after removing.
- Bolt
- 8 Nm +90°
- Always replace after removing.
- Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with tether
- Bracket
- For the fuel filler neck
- Fuel tank component
- Ground Connection
- For the fuel filler neck
- For discharging electrostatic charge
- Fuel Tank
- Removing and installing. Refer to FUEL TANK, REMOVING AND INSTALLING .
- Fuel Delivery Unit/Fuel Level Sensor
- Overview. Refer to OVERVIEW - FUEL DELIVERY UNIT/FUEL LEVEL SENSOR .
- Bracket
- For the Fuel Pump Control Module -J538-.
- Removing and installing for Fuel Pump Control Module -J538-. Refer to Fuel Pump Control Module -J538-, REMOVING AND INSTALLING .
- Rubber Buffer
- Between the fuel tank and the body
- Pay attention to proper seating
- Bolt
- 20 Nm +90°
- Always replace after removing.
- Allocation. Refer to the appropriate Parts Information.
- Bushing
- Note the installation position. Refer to Fig 2.
- Rubber Bushing
- Note the installation position. Refer to Fig 2.
- Mounting Strap
- Note the installation position. Refer to Fig 2.
- Allocation. Refer to the appropriate Parts Information.
- Expanding Rivet
- To secure the mounting straps on the fuel tank
- Bolt
- 20 Nm +90°
- Always replace after removing.
- Allocation. Refer to the appropriate Parts Information.
- Shield
- Check for secure seating.
- Attached at the top to the bracket -item 1- OVERVIEW - FUEL TANK
- Riveted three times
- Allocation. Refer to the appropriate Parts Information.
Overview - Fuel Tank Retainer
- Mounting Strap/Fuel Tank
- Bolt with Washer
- Rubber Bushing
- Bushing
