Brake Shoes, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

If Procedures Are Performed at the Brake Drum, Then the Test Plan for the Basic Setting Must Be Performed.

-- Perform the function "Rear brake service" using Vehicle Diagnostic Tester. Refer to DIAGNOSTIC ENTRIES .

Continuation

-- Remove the bolt -2- and also remove the brake drum -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

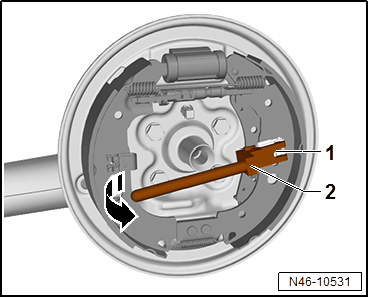

-- Remove the clamp -1- using the Assembly Tool: T30114 -2- in direction of -arrow- at the same time push against the pin from behind.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

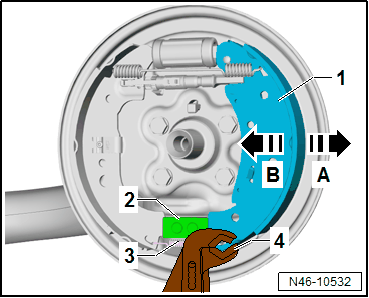

-- Lift the brake shoe using the parking brake lever -1- in the direction of -arrow A- using a water pump pliers -4- out of the lower support -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the brake shoe with the parking brake lever -1- in front of the lower support -2- in direction of -arrow B-.

-- Disengage the lower return spring -3-.

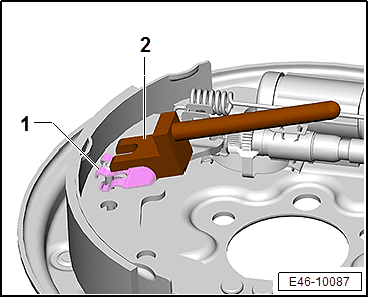

-- Remove the opposite clamp -1- using the Assembly Tool: T30114 -2- at the same time push against the pin from behind.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Risk of damaging the brake cylinder, boot and the automatic adjuster due to improper handling.

Damage has a negative effect on the function of the automatic adjuster and the brakes.

- Remove both brake shoes.

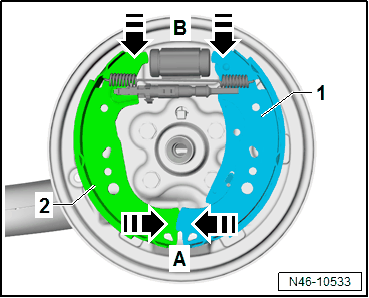

-- Push both brake shoes -1 and 2- on the bottom together in direction of -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull both brake shoes -1 and 2- downward in the in direction of -arrow B-.

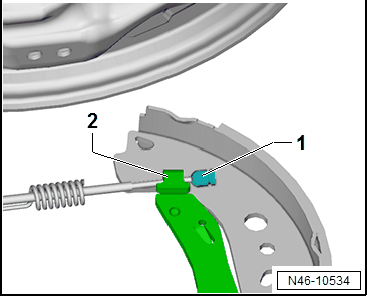

-- Disengage the parking brake -1- out of the parking brake lever -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

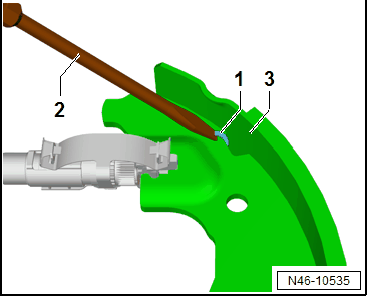

-- Pry out the upper return spring -1- out of the brake shoe without a parking brake lever -3- using a screwdriver -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
