Overview - Parking Brake

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

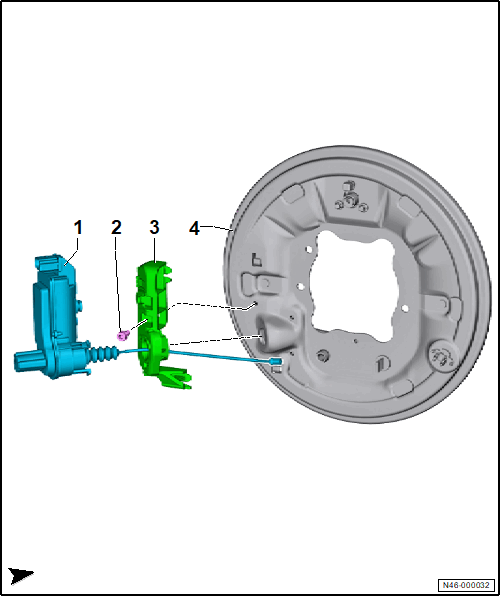

Fig 1: Exploded View Of Parking Brake

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Parking Brake Motor -V282- / Right Parking Brake Motor -V283-
- Refer to Left and Right Parking Brake Motor V282/V283, Removing and Installing .
Bolt
- 8 Nm
Bracket
Brake Carrier
