Brake Rotor, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
The following information describes the removing and installing on the left side of the vehicle as an example.
-- Remove the brake pads. Refer to Brake Pads, Removing and Installing .

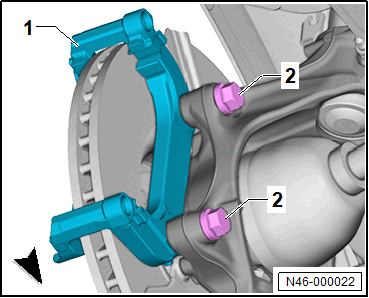

-- Remove the bolts -2- and remove the brake carrier -1-.

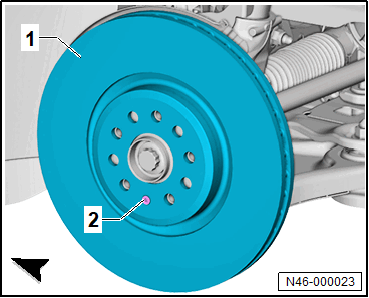

-- Remove the bolt -2-, at the same time counterhold the brake rotor -1-.
-- Remove the brake rotor -1-.
-- Thoroughly clean the contact surface of the brake rotor and the wheel hub and remove corrosion using a suitable service equipment.
