Brake Pads, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The following information describes the removing and installing on the left side of the vehicle as an example.

-- Refer to WHEEL, REMOVING .

Right Side of Vehicle

-- Disconnect the connector for the Front Brake Pad Wear Sensor -G35-.

Continuation for All Vehicles

-- Counterhold at the guide pin -3- and remove the bolts -2- from the brake carrier -1-.

GWWN46-10611

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

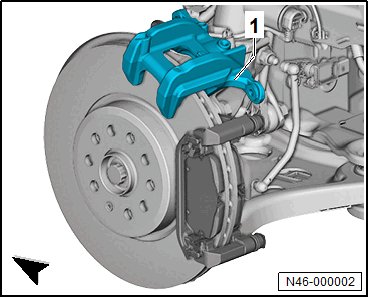

-- Remove the brake caliper -1- and position it so that the weight of the brake caliper -1- does not stress the brake hose.

GWWN46-000002

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the brake caliper -1- from falling.

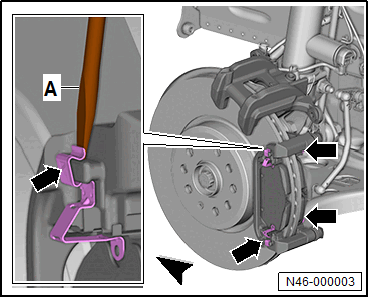

-- Remove the brake pad springs -arrows- using a screwdriver -A-.

GWWN46-000003

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Conditions

At the same time do not bend the brake pad springs.

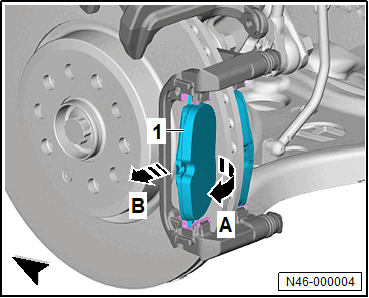

-- Turn the brake pad -1- in the direction of -arrow A- and remove in direction of -arrow B-.

GWWN46-000004

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

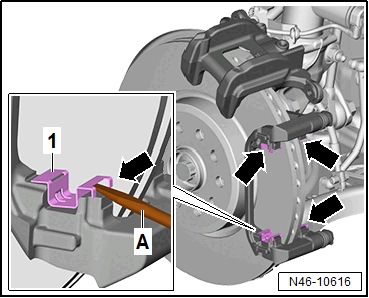

-- Pry off the brake pad retaining plates -1- at the locations -arrows- using a screwdriver -A-.

GWWN46-10616

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Thoroughly clean the contact surfaces for the brake pads and remove corrosion using suitable service equipment.

CAUTION:

Risk of injury due to chemical cleaning solutions. Chemical cleaning solutions can be easily inflammable and cause eye and skin irritation.

- Wear protective eyewear, safety gloves and a respirator.

- Pay attention to the safety data sheet and the operating instructions of the chemical.

-- Clean the brake caliper.

Conditions

Use only commercially available mineral spirits to clean the brake caliper.
