Brake Caliper, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the wheel. Refer to WHEEL, REMOVING .

Right Side of Vehicle

-- Disconnect the connector for the Front Brake Pad Wear Sensor -G35-.

Continuation for All Vehicles

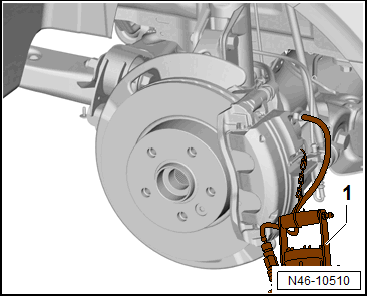

-- Attach the bleeder bottle bleed hose -1- to the brake caliper breather valve.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the breather valve.

-- Insert the Brake Pedal Actuator: VAG1869/2 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Close the bleeder valve and remove the bleeder bottle.

-- Remove the brake hose.

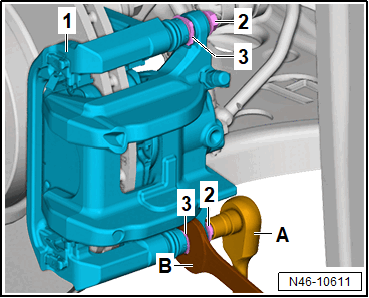

-- Remove the hex bolts -2-, at the same time counterhold at the guide pin -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the brake caliper from the brake carrier -1-.
