Mounting Bracket, Removing And Installing, RHD: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Tighten the nuts in sequence -1- through -5-.

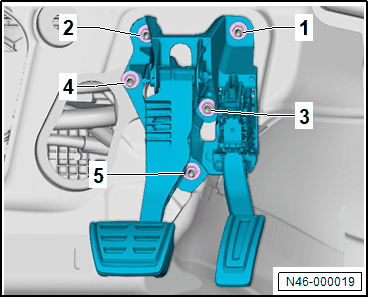

Fig 1: Mounting Bracket - tightening specification and sequence
GWWN46-000019Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Refer to Brake Pedal, Attaching to Brake Booster  .
