Right And Left Front Abs Wheel Speed Sensor G45/G47, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The Right Front ABS Wheel Speed Sensor -G45- and Left Front ABS Wheel Speed Sensor -G47- will be called speed sensor in the information that follows.

The following information describes the removing and installing on the left side of the vehicle as an example.

-- Raise the vehicle.

-- Disconnect the connector -3- from the front speed sensor -1-.

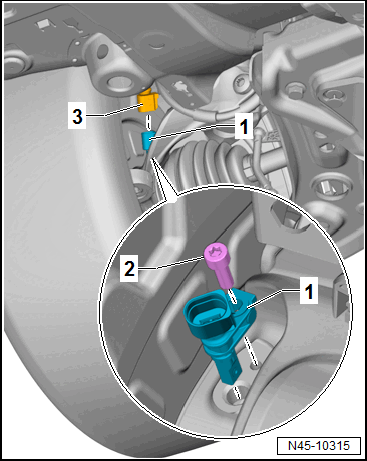

Fig 1: Exploded View Of Speed Sensor With Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- and pull the front speed sensor -1- out of the wheel bearing housing.
