Spring, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

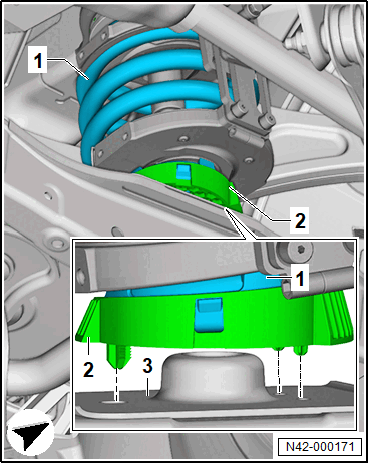

-- Check the spring -1- and the spring support -2- for damage and replace if damages are found.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Insert the spring support pins -2- into the spring link hole -3-.
