Transmission Mount, Replacing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

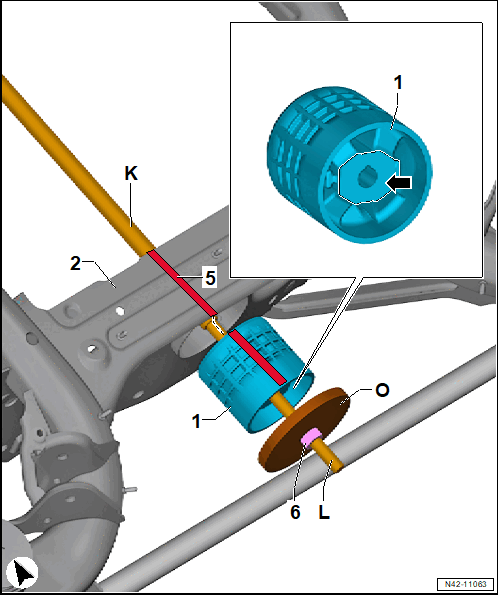

-- Apply the mark -5- on the new transmission mount -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the transmission mount -1- on the Spindle: T10620/4 -L-.

-- The displayed surface -arrow- on the transmission mount -1- points to the stabilizer bar.

-- Slide the Thrust Piece: T10620/15 -O- on the Spindle: T10620/4 -K-.

-- Install the nut for the Spindle: T10620/4 -6- on the Spindle: T10620/4 -L-.

-- Insert the Spindle: T10620/4 -L- together with the Spindle: T10620/17 -K- and the transmission mount in the subframe -2-.

-- Position and align the transmission mount -1- to the subframe -2- with the line -5-.

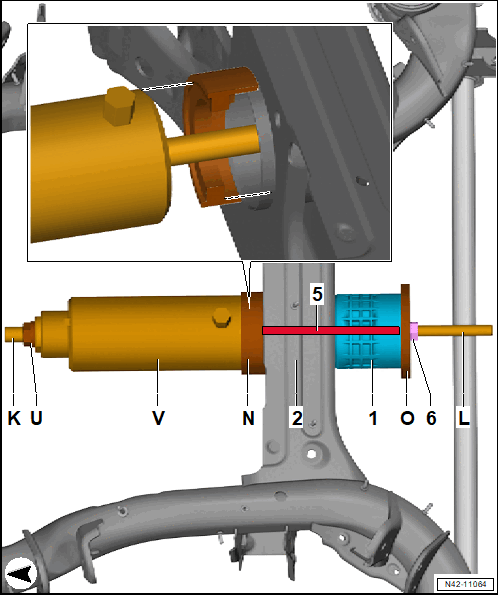

-- Slide the Thrust Piece: T10620/12 -N- on the Spindle: T10620/17 -K-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The side with the deep recess points towards the subframe -2-.

-- Push the Hydraulic Press: VAS 6178 -V- on the Spindle: T10620/17 -K-.

-- The side with the hydraulic connection points to the subframe -2-.

-- Position the Hydraulic Press: VAS 6178 -V- on the Thrust Piece: T10620/12 -N-.

-- Install the Nut: T10205/8-2 -U- on the Spindle: T10620/17 -K-.

-- Install the nut for the Spindle: T10620/4 -6- all the way to the Thrust Piece: T10620/15 -O-.

-- Position the Thrust Piece: T10620/12 -N- on the Hydraulic Press: VAS 6178 -V-.

-- Position and align the transmission mount -1- to the subframe -2- with the line -5-.

-- Tighten the nut -6- and the Nut: T10205/8-2 -U-, at the same time align the thrust pieces.

-- Pay attention that the tools seated are aligned.

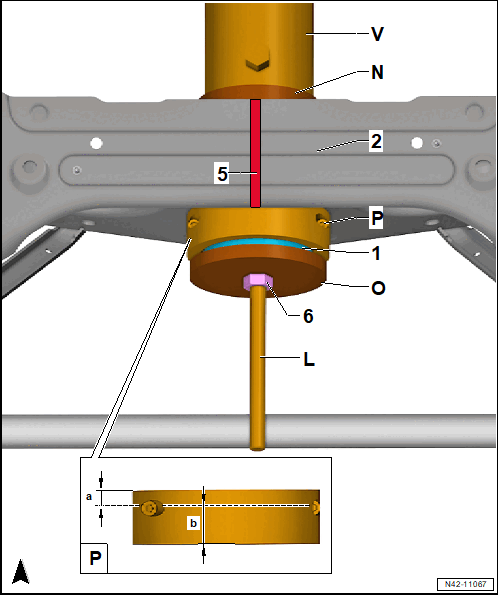

-- Position the Thrust Piece: T10620/13 -P- on the transmission mount -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The short distance -a- points to the subframe -2-.

-- Assemble both halves of the Thrust Piece: T10620/13 -P- with both bolts.

-- Align the thrust pieces and the transmission mount -1- to the subframe -2-.

-- Tighten both halves of the Thrust Piece: T10620/13 -P- with both bolts.

-- Tighten the nut -6-.

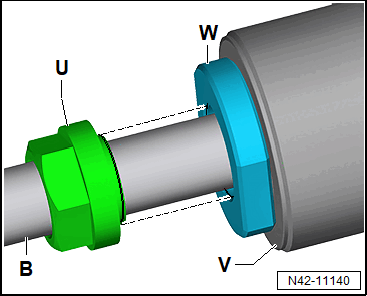

-- The Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2 -U- must be installed flush on the Bearing Installer - Wheel Hub/Bearing Kit -Thrust Piece: T10205/13 -W-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The guide from the Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2 -U- must be seated in the Bearing Installer - Wheel Hub/Bearing Kit -Thrust Piece: T10205/13 -W-.

-- Align the tools again and tighten the Nut: T10205/8-2 -U-.

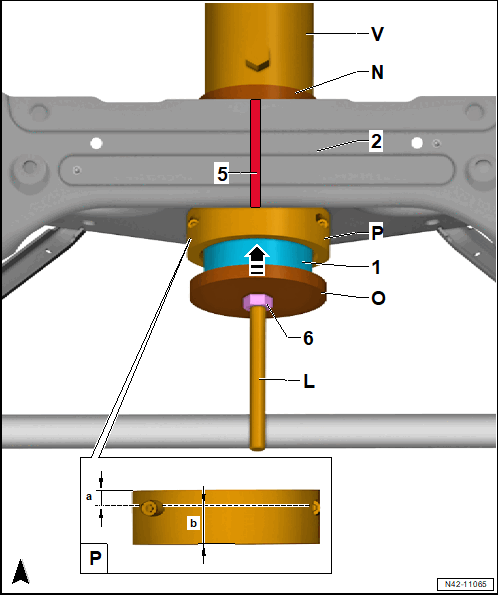

-- Connect the Foot Pump: VAS 6179 on the Hydraulic Press: VAS 6178 -V-.

-- Operate the Pneumatic/Hydraulic Foot Pump: VAS 6179 . Install the transmission mount -1- with the Pneumatic/Hydraulic Foot Pump: VAS 6178 -V-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

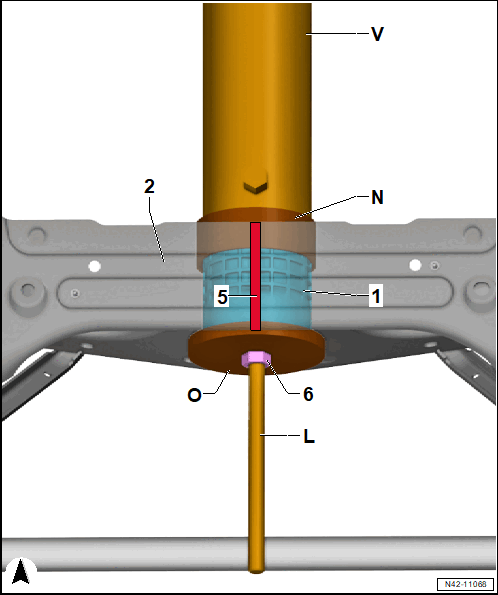

-- Engage the transmission mount -1- until the collar almost contacts the Thrust Piece: T10620/13 -P-.

-- Remove the Thrust Piece: T10620/13 -P-.

-- Engage the transmission mount -1- completely. The transmission mount -1- must fit flush on the subframe -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
