Rear SUBFRAME Mount, Replacing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

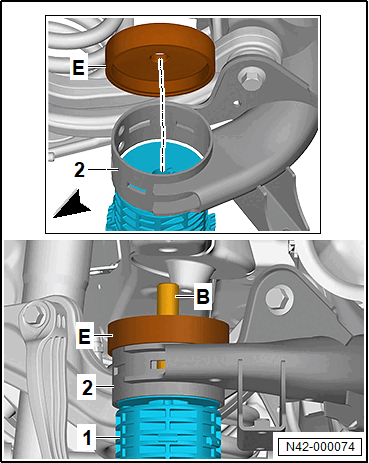

-- Position the Assembly Tool - Thrust Piece: T10620/9 -E- with the collar side on the subframe -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the rear subframe bearing -1- to the subframe -2-.

-- Install the Assembly Tool - Spindle: T10620/11 -B- in the Assembly Tool - Thrust Piece: T10620/9 -E-.

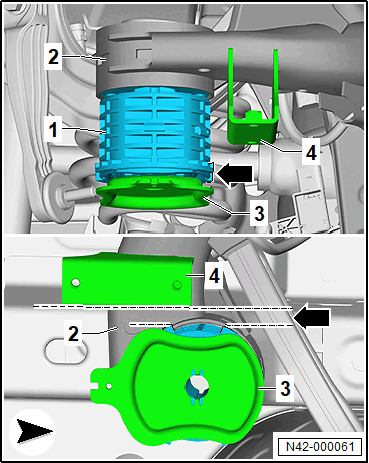

-- Align the rear subframe bearing -1- to the subframe -2- as shown with the lines.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The stabilizer bar mount -4- and the edges -arrow- of the rear subframe bearing -1- are parallel to each other.

-- Pay attention that the Assembly Tool - Thrust Piece: T10620/9 -E- is seated correctly on the edge of the subframe -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

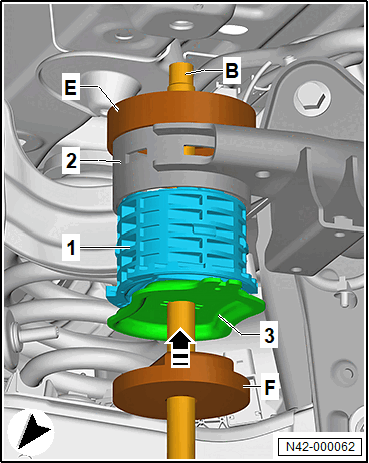

-- Slide the Assembly Tool - Thrust Piece: T10620/10 -F- on the Spindle: T10620/11 -B-.

-- Position the Assembly Tool - Thrust Piece: T10620/10 -F- on the cover -3-.

Conditions

The long side of the cover -3- is seated parallel to the direction of travel.

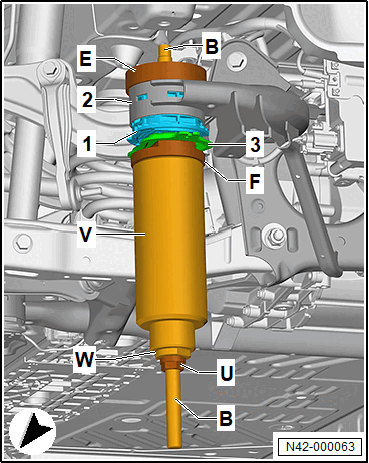

-- Push the Hydraulic Press: VAS 6178 -V- on the Spindle: T10620/11 -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Nut: T10205/8-2 -U- on the Spindle: T10620/11 -B- and tighten hand-tight.

-- Pretension the tools and the bearing at the rear subframe -1- via the Nut: T10205/8-2 -U-.

-- Align the tools again and tighten the Nut: T10205/8-2 -U-.

-- The guide from the Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2 -U- must be seated in the Bearing Installer - Wheel Hub/Bearing Kit -Thrust Piece: T10205/13 -W-.

-- Operate the Pneumatic/Hydraulic Foot Pump: VAS 6179 . Press in the rear subframe bearing -1- using the Hydraulic Press: VAS 6178 -V- until the collar is positioned "without play" on the subframe -2-.
