Motor Mount, Replacing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Grease the threads of the Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10205/13  -W-.

GWWN42-11025Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10205/13  -W- in the Hydraulic Press: VAS 6178  -V-.

-- Install the Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10205/13  -W- all the way.

-- Remove the rear axle. Refer to Rear Axle, Removing and Installing  .

-- Install the Nut: T10205/8-2  -U- on the Spindle: T10620/17  -K-.

GWWN42-11049Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the nut for the Spindle: T10620/17  -4- on the Spindle: T10620/17  -K-.

-- Insert the Spindle: T10620/4  -L- into the Spindle: T10620/17  -K-.

-- Slide the Thrust Piece: T10620/14  -M- on the Spindle: T10620/4  -K-.

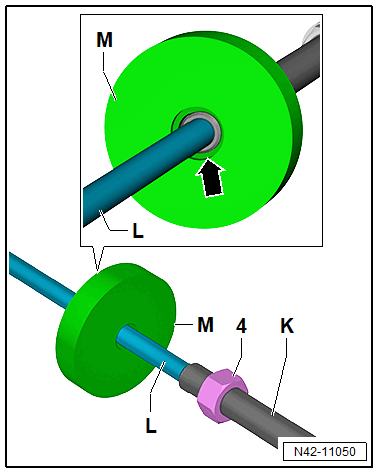

GWWN42-11050Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The recess -arrow- points to the motor mount.

-- Mark the installation position of the motor mount -1- to the subframe -2-.

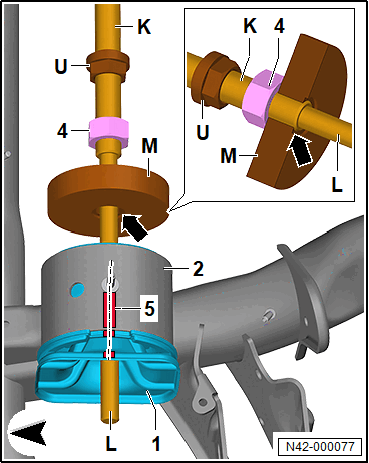

GWWN42-000077Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mark the installation position with a line -5-.

-- Slide the Spindle: T10620/4  -L- in the motor mount -1-.

-- The recess -arrow- points to the motor mount -1-.

-- Install the Nut: T10205/8-2  -U- on the Spindle: T10620/17  -K-.

-- The Thrust Piece: T10620/14  -M- must be seated on the Spindle: T10620/17  -K-.

-- The Nut: T10205/8-2  -U- on the Spindle: T10620/17  -K- is turned in the correct position.

-- The Spindle: T10620/17  -K- may not later protrude over the recess -arrow- in the direction to the motor mount.

-- Hold the Assembly Tool - Spindle: T10620/17  -K- and the Assembly Tool - Spindle: T10620/4  -L- at an angle.

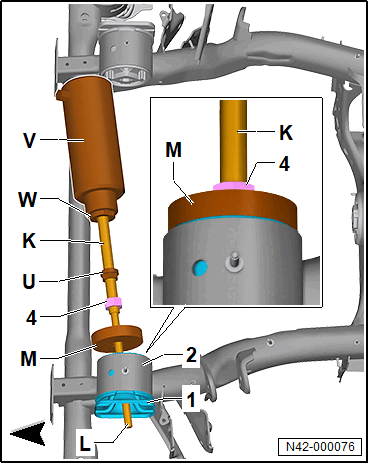

GWWN42-000076Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the Hydraulic Press: VAS 6178  -V- on the Spindle: T10620/17  -K-.

-- The plunger from the Hydraulic Press: VAS 6178  -V- points to the Nut: T10205/8-2  -U- and to the motor mount -1-.

-- Position the Thrust Piece: T10620/12  -N- on the Hydraulic Press: VAS 6178  -V-.

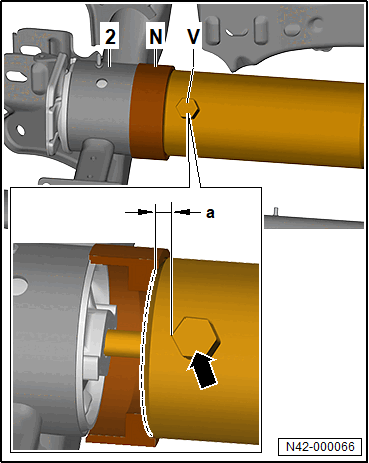

GWWN42-000066Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The flat recess points to the Hydraulic Press: VAS 6178  -V-.

-- The deeper recess is on the subframe -2-.

-- The distance -a- in between the Thrust Piece: T10620/12  -N- and the line connections -arrow- at the Hydraulic Press: VAS 6178  -V- must be present.

-- Pivot the Spindle: T10620/17  -K-, Spindle: T10620/4  -L- and the Hydraulic Press: VAS 6178  -V- inward.

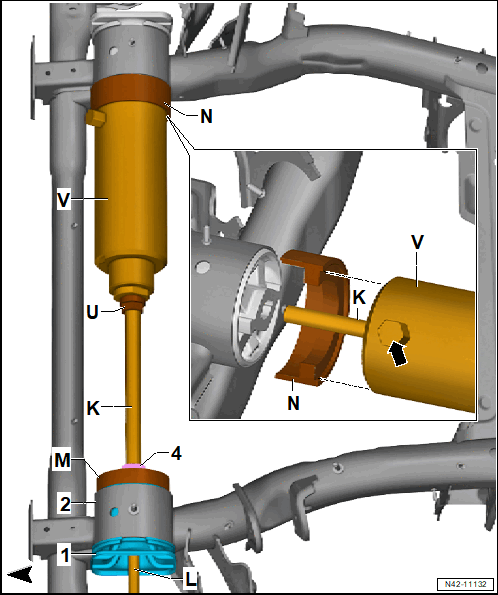

GWWN42-11132Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the Thrust Piece: T10620/12  -N- on the subframe -2-.

-- Position the Thrust Piece: T10620/14  -M- on the motor mount -1-.

-- Install the nut -4- for the Thrust Piece: T10620/14  -M-.

-- The Thrust Piece: T10620/14  -M- must be seated on the Spindle: T10620/17  -K-.

-- The Spindle: T10620/17  -K- may not protrude over the recess Thrust Piece: T10620/14  -M- in the direction to the motor mount.

-- Install the Nut: T10205/8-2  -U- on the Hydraulic Press: VAS 6178  -V-.

-- Align both thrust pieces and make sure they are seated correctly.

-- Tighten the nut -U- an the nut -4-.

-- The Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2  -U- must be installed flush on the Bearing Installer - Wheel Hub/Bearing Kit -Thrust Piece: T10205/13  -W-.

GWWN42-11140Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The guide from the Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2  -U- must be seated in the Bearing Installer - Wheel Hub/Bearing Kit -Thrust Piece: T10205/13  -W-.

-- Align the tools again and tighten the Nut: T10205/8-2  -U-.

-- Connect the Foot Pump: VAS 6179  on the Hydraulic Press: VAS 6178  -V-.

CAUTION:

Tools might fall down and injury may occur.

- When pressing out the tool have a second technician secure it from falling.

-- Operate the Pneumatic/Hydraulic Foot Pump: VAS 6179  . Press the motor mount outward using the Pneumatic/Hydraulic Foot Pump: VAS 6178  .
