Motor Mount, Replacing: Notes
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10205/13
- Pneumatic/Hydraulic Foot Pump: VAS 6179
- Hydraulic Press: VAS 6178
- Assembly Tool: T10620
- Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2
The following information describes the removing and installing on the left side of the vehicle as an example.
Conditions
- The help of a second person is necessary for the following procedure.

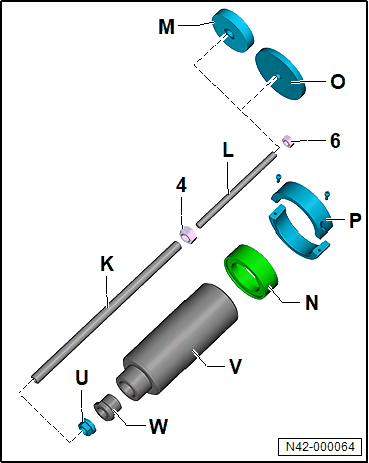

Necessary tools and aids from the Assembly Tool: T10620 :
-
K - Spindle: T10620/17
4 - Nut for the Spindle: T10620/17
L - Spindle: T10620/4
M - Thrust Piece: T10620/14
O - Thrust Piece: T10620/15
6 - Nut for the Spindle: T10620/4 -L-
P - Thrust Piece: T10620/13
N - Thrust Piece: T10620/12
V - Hydraulic Press: VAS 6178
W - Bearing Installer - Wheel Hub/Bearing Kit - Thrust Piece: T10205/13
U - Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2
