Motor Mount, Replacing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

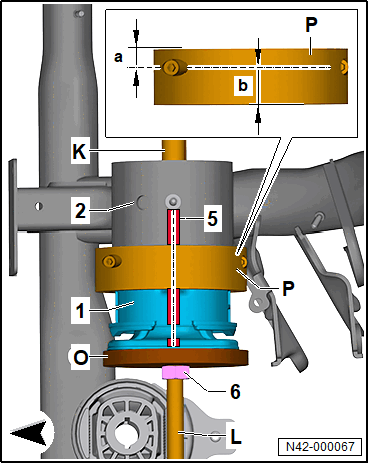

-- Apply the mark -5- on the new motor mount -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position and align the motor mount -1- to the subframe -2- with the line -5-.

-- Slide the Thrust Piece: T10620/15 -O- on the Spindle: T10620/4 -K-.

-- Install the nut -6- on the Spindle: T10620/4 -L-.

-- Position the Thrust Piece: T10620/13 -P- to the motor mount -1-, the shorter distance -a- points toward the subframe -2- when doing so.

-- Assemble both halves of the Thrust Piece: T10620/13 -P- with both bolts.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

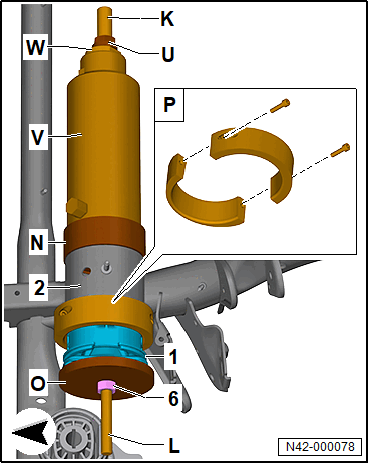

-- Slide the Thrust Piece: T10620/12 -N- on the Spindle: T10620/17 -K-.

-- Position the Thrust Piece: T10620/12 -N- on the subframe -2-.

-- The side with the two recesses points to the subframe -2-.

-- Push the Hydraulic Press: VAS 6178 -V- on the Spindle: T10620/17 -K-.

-- Position the Hydraulic Press: VAS 6178 -V- on the Thrust Piece: T10620/12 -N-.

-- Install the Nut: T10205/8-2 -U- on the Spindle: T10620/17 -K-.

-- Install the nut for the Spindle: T10620/4 -6- to the Thrust Piece: T10620/15 -O-.

-- Position and align the cut-out on the Thrust Piece: T10620/12 -N- with the large diameter on the subframe -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

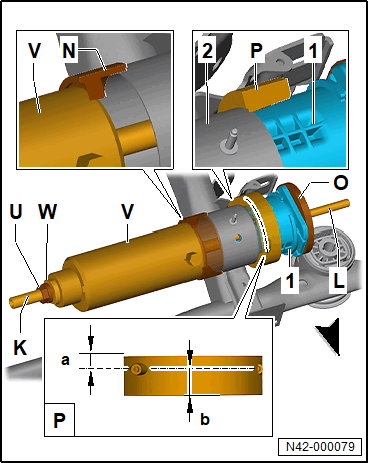

-- Align the Hydraulic Press: VAS 6178 -V- on the Thrust Piece: T10620/12 -N-.

-- The guide from the Bearing Installer - Wheel Hub/Bearing Kit - Nut: T10205/8-2 -U- must be seated in the Bearing Installer - Wheel Hub/Bearing Kit -Thrust Piece: T10205/13 -P-.

-- Align the tools again and tighten the Nut: T10205/8-2 -U-.

-- Tighten both halves of the Thrust Piece: T10620/13 -P- with both bolts.

-- Connect the Foot Pump: VAS 6179 on the Hydraulic Press: VAS 6178 .

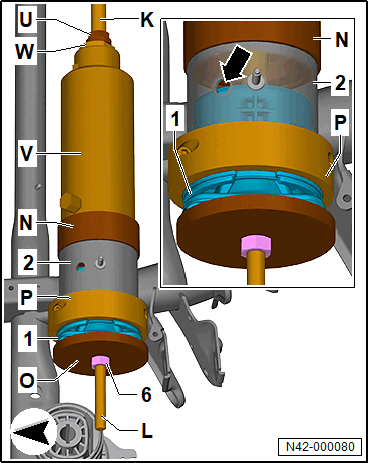

-- Operate the Pneumatic/Hydraulic Foot Pump: VAS 6179 . Engage the motor mount -1- with the Hydraulic Press: VAS 6178 -V- inward.

-- Engage the motor mount -1- until the collar almost contacts the Thrust Piece: T10620/13 -P-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

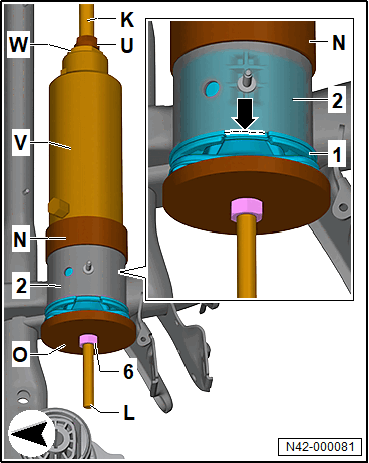

-- The end of the motor mount -1- is then in the area of the hole -arrow-.

-- Remove the Thrust Piece: T10620/13 -P-.

-- Completely engage the motor mount -1- until the motor mount -3- contacts the subframe -2- -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
