Overview - Drive Axle

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

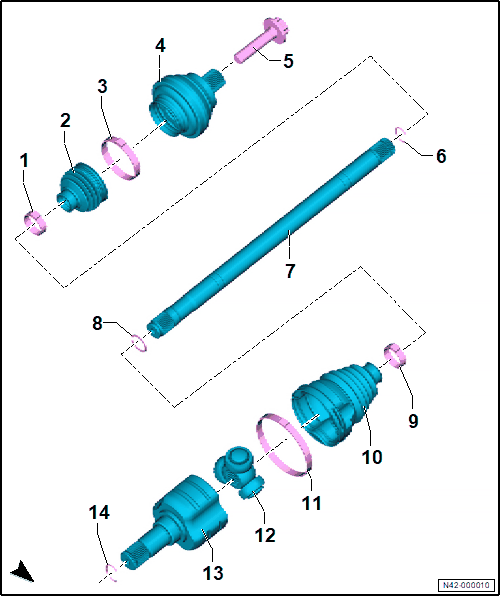

Fig 1: Exploded View Of Drive Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Clamp
- Replace after removing
- Refer to Axle Boot Clamp, Tensioning .
CV Boot
Clamp
- Replace after removing
- Refer to Axle Boot Clamp, Tensioning .
Outer CV Joint
- Refer to Drive Axle, Disassembling and Assembling .
Bolt
- Replace after removing
- Refer to Drive Axle Threaded Connection, Loosening and Tightening .
- M 16 x 1.5 x 70
- 200 Nm +90°
Circlip
- Replace after removing
Drive Axle
- Depending on equipment/version
- Allocation. Refer to the Parts Information.
Circlip
- Replace after removing
Clamp
- Replace after removing
- Refer to Axle Boot Clamp, Tensioning .
CV Boot
- Replace after removing
Clamp
- Replace after removing
- Refer to Axle Boot Clamp, Tensioning .
Triple Roller Star with Rollers
- Refer to Drive Axle, Disassembling and Assembling .
Joint
- Refer to Drive Axle, Disassembling and Assembling .
Circlip
- Replace after removing
