Upper Front Control Arm, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Refer to Wheel, Removing .

-- Remove the rear center underbody trim panel. Refer to CENTER UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .

-- Position the Engine/Gearbox Jack: VAS 6931 -B- with the Engine/Gearbox Jack - Gearbox Support: T10337 -A- under the wheel bearing housing -1- and slightly press upward for support.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

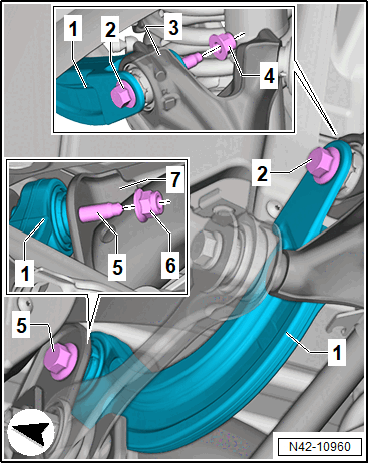

-- Remove the nut -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2- from the wheel bearing housing -3-.

-- Remove the nut -6-.

-- Remove the bolt -5- from the subframe -7-.

-- Remove the front upper control arm -1-.
