Overview - Spring Link

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows the left side of the vehicle as an example

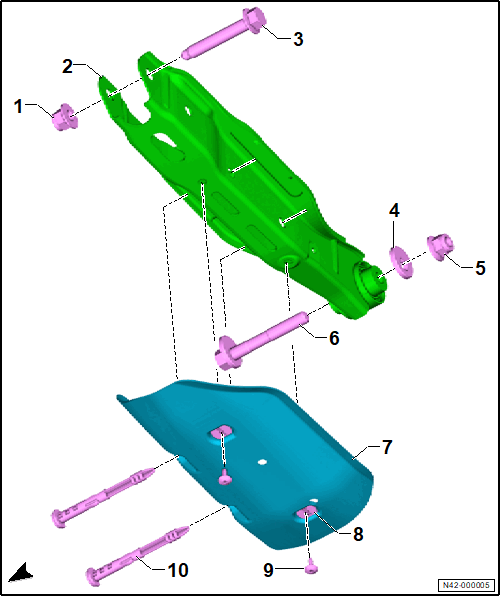

Fig 1: Exploded View Of Spring Link

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Nut
- Replace after removing
- M 14 x 1.5
Spring Link
- Refer to Spring Link, Removing and Installing .
Bolt
- Replace after removing
- M 14 x 1.5 x 90
- 130 Nm +180°
Eccentric Washer
Nut
- Replace after removing
- M 14 x 1.5
- 190 Nm
Eccentric Screw
- M 14 x 1.5 x 97
Spring Link Stone Chip Protection
- Refer to Spring Link Stone Chip Protection, Removing and Installing .
Expanding Rivet
- Quantity: 2
Bolt
- Quantity: 2
- 2 Nm
Clip
- Quantity: 2
- Replace after removing
