Lower Control Arm, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Refer to Wheel, Removing .

-- Unclip the bracket -1- for the wire -2- at the lower control arm -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

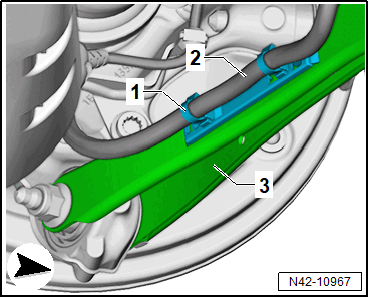

-- Press together the bracket locking tabs -1- on the inside of the lower control arm -3-.

-- Remove the wire -3- from the bracket -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the Engine/Gearbox Jack: VAS 6931 -B- with the Engine/Gearbox Jack - Gearbox Support: T10337 -A- under the wheel bearing housing -1- and slightly press upward for support.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

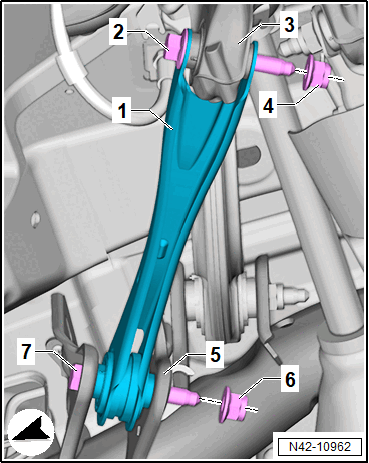

-- Remove the nut -4- for the lower control arm -1- at the wheel bearing housing -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -6- for the lower control arm -1- at the subframe -5-.

-- Remove the bracket.

-- Remove the bolts -2- and -7- from the lower control arm -1-.

-- Remove the lower control arm -1-.
