Overview - Electronic Damping Control Module

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

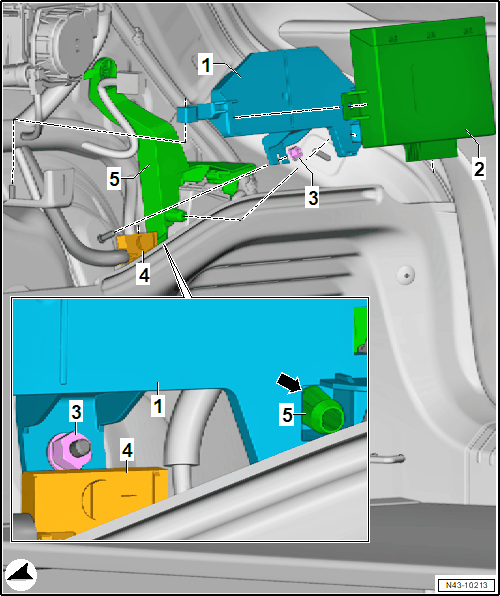

GWWN43-10213Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bracket for the Electronic Damping Control Module -J250-
  2. Electronic Damping Control Module -J250-
  3. Nut
    • 2.5 Nm
  4. Connector
  5. Bracket
