Electronic Damping Control Module -J250-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
The Electronic Damping Control Module -J250- will be called control module in the information that follows.
-- If the control module is replaced, the test plan to replace the control module must be performed using the Vehicle Diagnostic Tester.
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

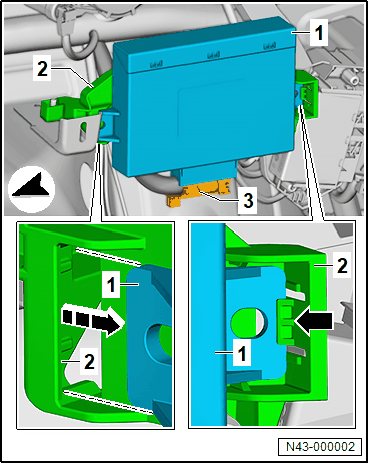

-- Disconnect the connector -3-.
-- Unclip the control module -1- on the right side -arrow-.
-- Pull the control module -1- out of the bracket -2- in the -direction of the arrow-.
