Boot, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

CAUTION:

Check the steering gear for wear.

- The steering gear must be replaced if corrosion, damage, wear or debris can be seen on the steering rack.

- If no lubricating film can be seen on the steering rack, the steering gear must be replaced.

- Do not lubricate the steering rack.

-- Slide the new clip, new clamp and boot on the tie rod.

-- Slightly grease the boot sealing surface to the tie rod and to the steering gear. Allocation. Refer to Parts Information.

-- Push the boot all the way onto the steering gear.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the new clamp -1- on the boot using Pinch-on Clamp Tool: VAS 6199A .

-- Clamp the clamp -1- until reaching the deformation -arrow-.

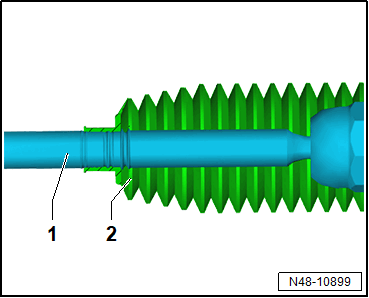

-- Move the boot -2- on the tie rod -1- on the outside and bring to installation position.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the new clamp -2- for the boot -3- on the tie rod -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Perform the axle alignment. Refer to Axle Alignment .
