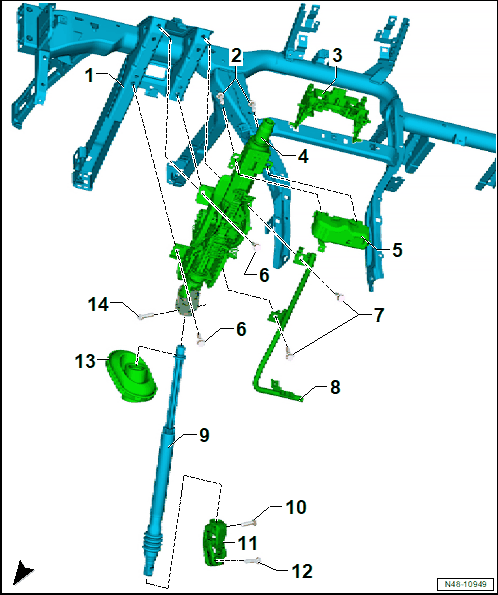

Overview - Steering Column, LHD Vehicle
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Instrument Panel Crossmember
- Refer to OVERVIEW - INSTRUMENT PANEL CROSSMEMBER .
- Refer to INSTRUMENT PANEL CROSSMEMBER, REMOVING AND INSTALLING .
- Shear bolt
- Quantity: 2
- Instrument Cluster Bracket
- Steering Column
- Refer to Steering Column, Removing and Installing .
- Electronic Steering Column Lock Control Module -J764-
- Bolt
- Quantity: 2
- M 8 x 28
- 20 Nm
- Bolt
- Quantity: 2
- M 8 x 32
- 20 Nm
- Crash Bolster
- Refer to CRASH BOLSTER, REMOVING AND INSTALLING .
- Steering Intermediate Shaft
- Bolt
- Replace after removing
- M8 x 35
- 20 Nm +90°
- Universal Joint
- Bolt
- Replace after removing
- M8 x 35
- 20 Nm +90°
- Seal
- Bolt
- Replace after removing
- M8 x 35
- 20 Nm +90°
