Coupling Rod, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
-- Refer to Wheel, Removing .

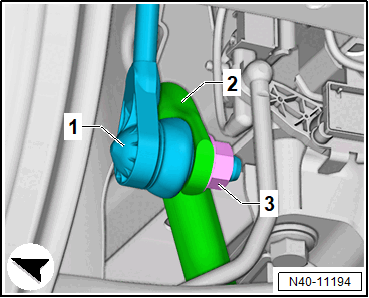

-- Remove the nut -3- from the coupling rod -1-, at the same time, counterhold on the coupling rod internal multi-point bolt -1-.
-- Remove the coupling rod -1- from the suspension strut -2-.
-- Remove the nut -3- from the coupling rod -1-, at the same time, counterhold on the coupling rod internal multi-point bolt -1-.
-- Remove the coupling rod -1- from the stabilizer bar -2-.
