Scissor Lift Table Preparing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Scissor Lift Table - Audi Set: VAS 6131/10-7
Scissor Lift Table - Audi Set - Plate: VAS 6131/10-1
Scissor Lift Table: VAS 6131B
Scissor Lift Table - Audi Set - Spindles: VAS 6131/10-5
Scissor Lift Table - Q7 Set - Universal Supports: VAS 6131/13-2

Removing

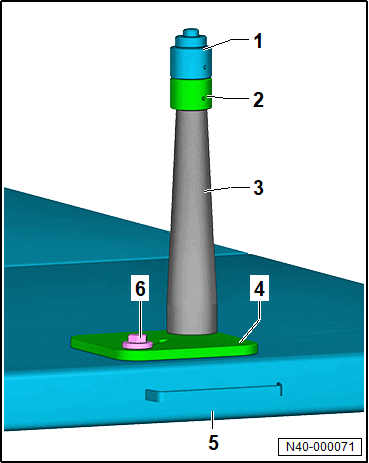

Preparing the mounts 1:

-- Assemble the mounts as shown out of the following tools.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Adapter Scissor Lift Table - Audi Set: VAS 6131/10-7
Scissor Lift Table - Audi Set - Spindles: VAS 6131/10-5
Tapered Mounting Pin Scissor Lift Table - Audi Set - Support Tapers: VAS 6131/10-4
Scissor Lift Table - Audi Set - Plate: VAS 6131/10-1
Scissor Lift Table: VAS 6131B
M 10 x 25 Bolt Scissor Lift Table - Audi Set: VAS 6131/10

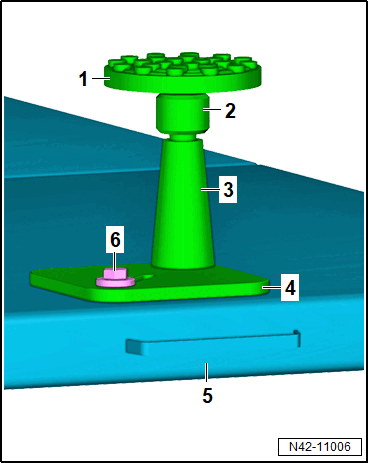

Prepare the mount 2:

-- Assemble the mount as shown out of the following tools.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Scissor Lift Table - Q7 Set - Universal Supports: VAS 6131/13-2
Scissor Lift Table - Audi Set - Spindles: VAS 6131/10-5
Tapered Mounting Pin Scissor Lift Table - Audi Set - Support Tapers: VAS 6131/10-4
Scissor Lift Table - Audi Set - Plate: VAS 6131/10-1
Scissor Lift Table: VAS 6131B
M 10 x 25 Bolt Scissor Lift Table - Audi Set: VAS 6131/10

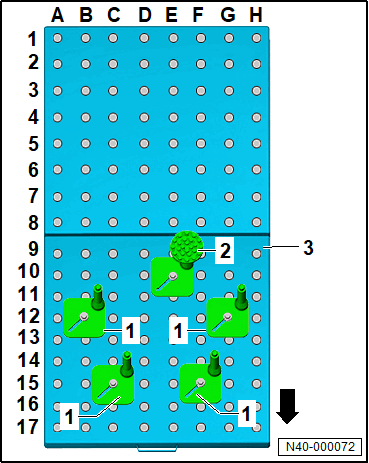

-- Install the bolts for the mounts by hand on the Scissor Lift Table: VAS 6131B -3-. Position the Scissor Lift Table: VAS 6131 B -3- horizontally.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Coordinates	Mount
E 10	2
B 12	1
G 12	1
C 15	1
F 15	1

Tip

Mounts can also be installed attached at other coordinates. The distance from the mounts to each other must be exactly as shown.

-- Pay attention to the level on the Scissor Lift Table: VAS 6131B -3-.
