Front Engine/Motor Mount, Replacing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Refer to FRONT MOTOR, REMOVING .

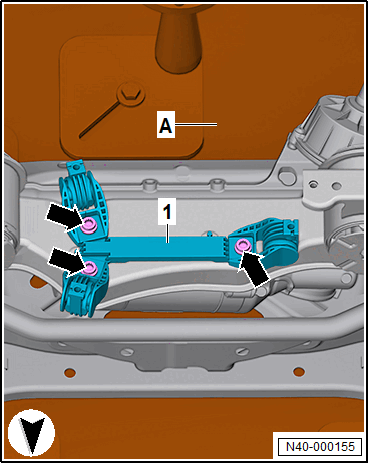

-- Remove the bolts -arrows-.

GWWN40-000155Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bracket -1-.

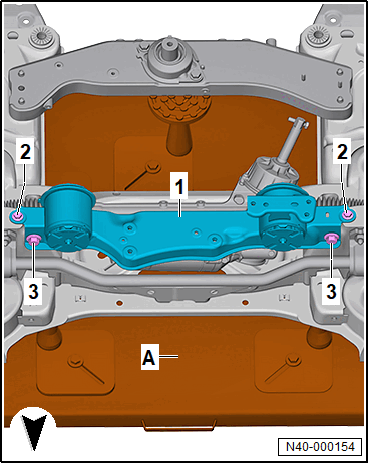

-- Remove the bolts -2- and -3-.

GWWN40-000154Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the motor support -1-.
