Rear Control Arm, Replacing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the control arm. Refer to Control Arm, Removing and Installing .

-- Pay attention to the allocation for the control arm bearing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Subframe
Control Arm
Rear Control Arm
Front Control Arm Bearings

-- Install the Assembly Tool - Centering: T10642/5 -E- in the Assembly Tool - Handle: T10642/1 -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the Assembly Tool - Pipe: T10642/2 -B- on the Press Plate: VW401A -G-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the control arm -2- with the Assembly Tool - Thrust Piece: T10642/6 -F- on the Assembly Tool - Pipe: T10642/2 -B-.

Conditions

The angled edges of the control arm -2- must point downward.

-- Insert the Assembly Tool - Handle: T10642/1 -A- with the Assembly Tool - Centering: T10642/5 -E- in the Assembly Tool - Thrust Piece: T10642/4 -F-.

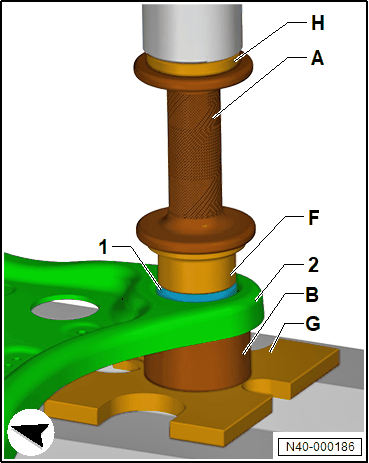

-- Press out the rear control arm -1- using the Piece - Multiple Use: VW412 -H-.
