Front Control Arm Bearing, Replacing: Removing

-- Remove the control arm. Refer to Control Arm, Removing and Installing  .

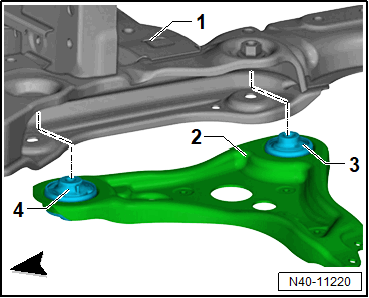

-- Pay attention to the allocation for the control arm bearing.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Subframe
2. Control Arm
3. Rear Control Arm
4. Front Control Arm Bearings

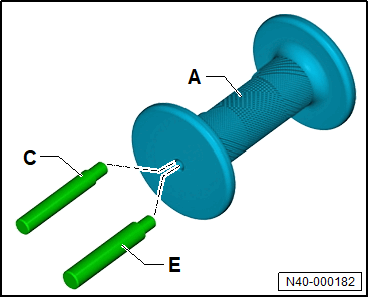

-- Install the Assembly Tool - Centering: T10642/3  -C- in the Assembly Tool - Handle: T10642/1  -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

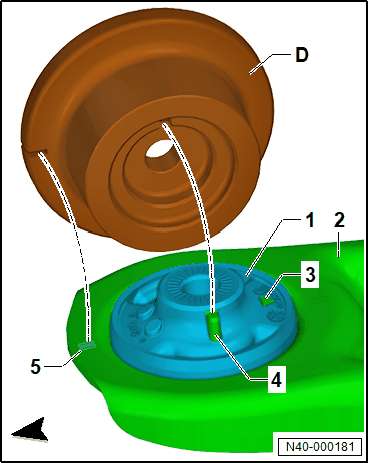

-- Position the Assembly Tool - Thrust Piece: T10642/4  -D- on the front control arm -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Conditions

• The guide -4- must be engaged into the recess at the Assembly Tool - Thrust Piece: T10642/4  -D-.
• The small diameter at the Assembly Tool - Thrust Piece: T10642/4  -D- must point downward.

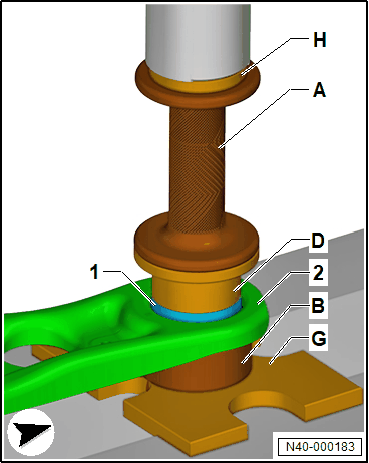

-- Position the Assembly Tool - Pipe: T10642/2  -B- on the Press Plate: VW401A  -G-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the control arm -2- with the Assembly Tool - Thrust Piece: T10642/4  -D- on the Assembly Tool - Pipe: T10642/2  -B-.

Conditions

• The angled edges of the control arm -2- must point downward.

-- Insert the Assembly Tool - Handle: T10642/1  -A- with the Assembly Tool - Centering: T10642/3  -C- in the Assembly Tool - Thrust Piece: T10642/4  -D-.

-- Press out the front control arm -1- using the Piece - Multiple Use: VW412  -H-.
