Ball Joint, Removing And Installing: Removing
AWD Vehicles:
-- Loosen the drive axle threaded connection. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
Continuation for all vehicles
-- Refer to Wheel, Removing .
-- Remove the control arm stone chip protection. Refer to Control Arm Stone Chip Protection, Removing and Installing .
Vehicles with front level control system sensor
-- Remove the left front level control system sensor from the control arm. Refer to Left and Right Front Level Control System Sensor G78/G289, Removing and Installing .
AWD Vehicles:
-- Remove the drive axle threaded connection.
-- Pry out the drive axle from the wheel bearing unit. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
Continuation for all vehicles
-- Remove the nuts -3-.
-- Remove the control arm -2- downward from the ball joint in the -direction of the arrow A-.
-- Pull the wheel bearing housing -1- outward in the -direction of the arrow B-.
-- Turn away the wheel bearing housing -1- outward, to take the load of the control arm -2-.
-- Push the control arm upward as far as necessary.
-- Loosen the nut -4- on the ball joint -2- but do not remove it.
-- Remove the nut -4- only to the end of the threads. To protect the thread, screw the nut -4- on the pin several turns.
-- At the same time counterhold with a commercially available Torx Bit T40.
Damage to the wheel bearing housing! Loosened bushings on the wheel bearing housing due to incorrectly inserted ball joint puller.
- Position the ball joint puller in a way that the lower mount is supported on the socket and not on the wheel bearing housing.

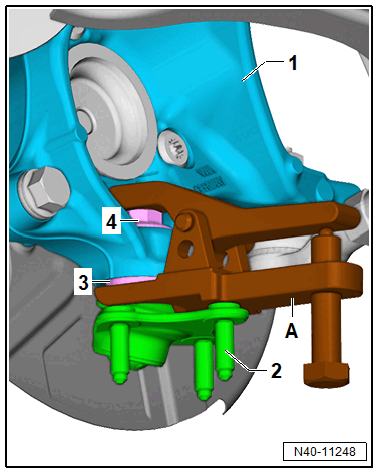

-- Position the lower mount from the Puller - Ball Joint: 3287A -A- on the bushing -3-.
-- Press off the ball joint -2- from the wheel bearing housing -1- using the Puller - Ball Joint: 3287A -A-. Remove the nut -4-.
