Drive Axle, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Replace the transmission seal. Refer to LEFT SEAL, REPLACING 0MJ , LEFT SEAL, REPLACING 0MH or RIGHT SEAL, REPLACING 0MJ , RIGHT SEAL, REPLACING 0MH .

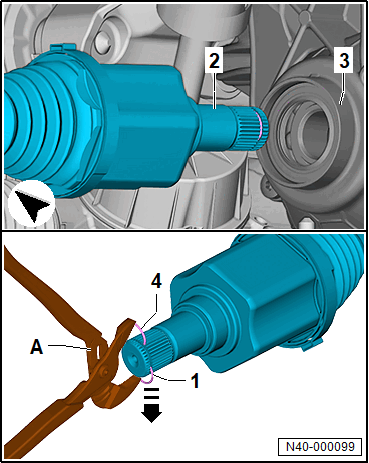

-- Use the commercially available water pump pliers -A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Apply adhesive tape to the jaws of the water pump pliers -A- in order to avoid damage to the drive axle splines -2-.

-- Position the ends of the new circlip -4- at the ends of the old circlip -1-.

-- Position the washer fluid pump pliers -A- and the old circlip -1- from the groove from the drive axle -2-.

-- At the same time the new circlip -4- is pressed in the groove from the drive axle -2-.

-- Check the correct seating of the circlip -4-.

-- Position the drive axle straight and press it in until it engages audibly.

-- When inserting the drive axle on the inner joint.

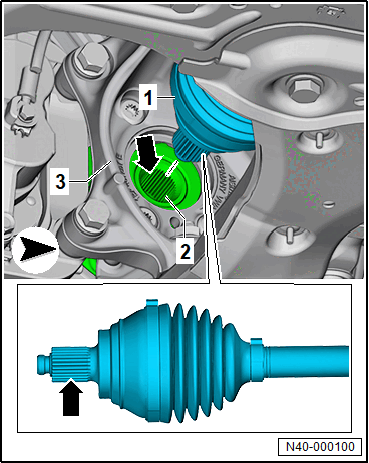

-- Clean the inside of the wheel hub -2- and the drive axle splines -1- -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Conditions

The cleaned positions must be free of oil and grease.

Vehicles with front level control system sensor

-- Perform the necessary Function/Functions with the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation for all vehicles
