Trailer Socket -U10-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

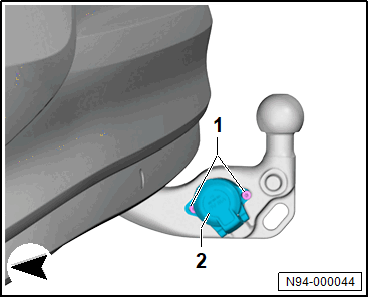

-- Remove the bolts -1-.
-- Remove the trailer socket -2-, until the wires are accessible.
CAUTION:
Risk of interchanging the connector assignment.
- Use the exact connector assignment of the wires from the applicable wiring diagram.
- Take photos of the assignment.
-- Remove the wires.
-- Remove the trailer socket -2-.
