Overview - Socket And Towing Recognition Control Module

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

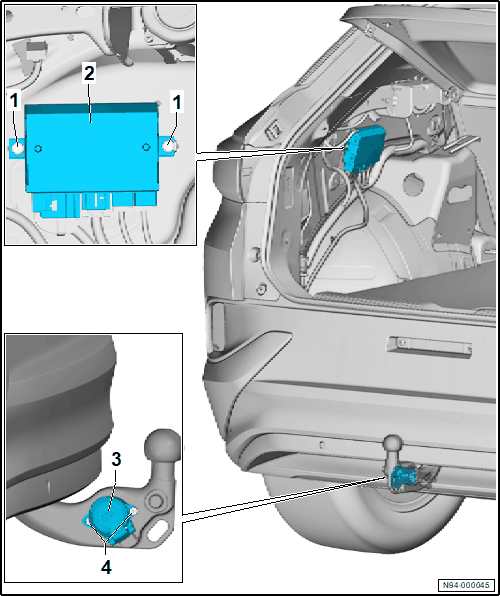

GWWN94-000045Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 2.5 Nm
    • Quantity: 2
  2. Towing Recognition Control Module -J345-
  3. Trailer Socket -U10-
  4. Bolt
    • 5 Nm
    • Quantity: 2
