Rear Fog Lamp -X3-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

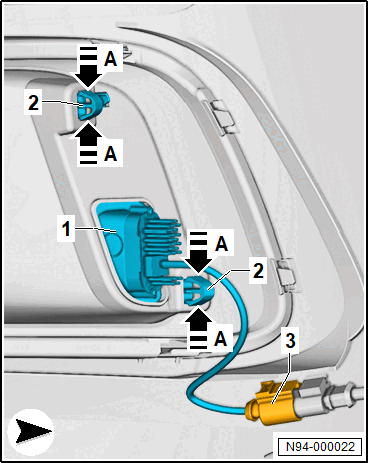

-- Disconnect the connector -3-.

GWWN94-000022Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the clamps -2- in the direction of -arrow A-.

-- Remove the rear fog lamp -1-.
